Dr. Pulley HIT Clutch Rear Driven Pulley with Outer Bell, 60 Degrees for 150cc - C181401 / B181401 replaces 181401

C181401 / B181401 60 Degree 150cc High Performance Clutch by DR. PULLEY (181401) / Dr. Pulley HiT Performance Clutch Gy6 150-232cc p/n 181401

$279.99
Availability: In stock
SKU
c181401_hhpSW

Frequently bought together

  1. Dr. Pulley HIT Clutch Rear Driven Pulley with Outer Bell, 60 Degrees for 150cc - C181401 / B181401 replaces 181401
  2. +
  3. Dr. Pulley Clutch Variator, Front Driver Pulley for 150cc, GY6 - V181401 replaces 181401
  4. +
  5. TechPulley 15%, 800RPM Torque Spring, Orange for 150cc , GY6
  6. +
  7. TechPulley 20%, 1200RPM Torque Spring, Yellow for 150cc, GY6
  8. +
  9. Hammerhead Clutch Kit for 150cc , GY6 - HHPCLUTCHKIT150 - m150-1031000, m150-1032000, m150-1071000, m150-1033000
  10. +
  11. Dr. Pulley Sliding Roller Weights 18x14 for 150cc, GY6
  12. +
  13. Motorio 1500 RPM Torque Spring, Blue for 150cc, GY6 - Motorio1500
  14. +
  15. Motorio 1200 RPM Torque Spring, Red for 150cc, GY6 - Motorio1200
  16. +
  17. Hammerhead Maximum Performance CVT Package for 150cc, GY6 - CVTMAX
  18. +
  19. Hammerhead Clutch Variator, Front Driver Pulley for 150cc, GY6 - M150-1071000 replaces 3050098, 157F.10.100, 14374
Total price: $0.00

Thumbnail Name Price Options
$279.99
$84.99
$19.99
$19.99
$99.99
Hammerhead Clutch Variator, Front Driver Pulley for 150cc, GY6 - M150-1071000 replaces 3050098, 157F.10.100, 14374   + $0.00
Hammerhead Drive Belt, 743x20x30 Belt for 150cc, GY6 - M150-1033000 replaces 3050270, 14363, 152.10.300   + $0.00
Hammerhead Clutch Rear Pulley, Driven for 150cc, GY6 - M150-1031000 replaces 3050099, 152.10.200, 14364   + $0.00
Hammerhead Clutch Bell, Clutch Drum / Housing for 150cc, GY6 - M150-1032000 replaces 152.10.210, 14362   + $0.00
$0.00
$19.99
$19.99
$429.99
Hammerhead Clutch Variator, Front Driver Pulley for 150cc, GY6 - M150-1071000 replaces 3050098, 157F.10.100, 14374   + $0.00
Hammerhead Drive Belt, 743x20x30 Belt for 150cc, GY6 - M150-1033000 replaces 3050270, 14363, 152.10.300   + $0.00
Hammerhead Clutch Rear Pulley, Driven for 150cc, GY6 - M150-1031000 replaces 3050099, 152.10.200, 14364   + $0.00
Hammerhead Clutch Bell, Clutch Drum / Housing for 150cc, GY6 - M150-1032000 replaces 152.10.210, 14362   + $0.00
$29.99
Total Selected Items:
Total price: $0.00

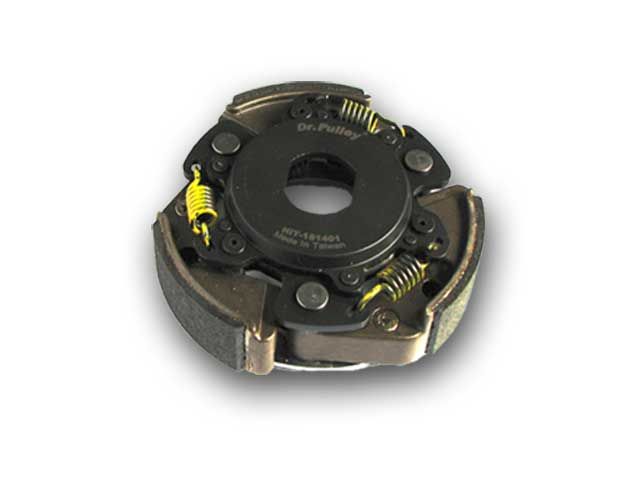

This performance Dr. Pulley HiT clutch is specifically made for the GY6 150cc engine.  The DR. PULLEY clutch comes with the outer clutch drum.

60 Degrees

The Dr. Pulley HiT Clutch with 60 degree pillow springs is for use on four-wheel CVT vehicles, ESPECIALLY GOKARTS, or scooters with a modified cylinder requiring the clutch to engage at a normal RPM.  Results from using this clutch include decreased slippage and improved transmission efficiency.

  • Inner Diameter (bell): 125mm
  • Overall Height (bell): 43mm
  • Number of Splines (clutch bell): 19
  • 60 Degree Pillow Springs
  • Includes 1 Nut Locker and 1 Torque Spring Washer
  • Includes Assortment of Pillow Springs and Clutch Springs for fine tuning
  • Clutch Outer diameter: 122mm - for use with 125mm ID clutch bell.
  • Center opening: Width - 28mm; Height - 24mm

The Dr Pulley HiT clutch has high-quality Kevlar clutch pad material running the length of the clutch arms for maximum surface area engagement with the clutch bell.

Additionally, the HiT clutch has a secondary mechanism that engages when your CVT system reaches a certain RPM (tunable with the included three sets of "pillow" springs). This secondary mechanism locks the clutch arms in place against the clutch bell preventing clutch slippage when under load!

The result? Solid clutch engagement at all times, particularly when accelerating and climbing. This clutch is designed to be tuned to your vehicle and comes with a total of six sets of springs - three clutch arm spring sets, and three pillow spring sets.

Hammerhead part # c181401
Hammerhead part # b181401
Dr. Pulley HiT Performance Clutch Gy6 150-232cc p/n 181401
