Trailmaster 200EFI Engine Assembly, Complete (169cc) for EFI Vehicles- 1000040200G001

Trailmaster 200E Complete Engine for EFI

Engine Family MQJNX.169ATB
Engine ID 161 QMK / 161QMK

Trailmaster 200cc engine (really a 169cc)

COMPLETE TRAILMASTER ENGINE FOR Trailmaster 200E models including: Challenger, Blazer, XRS, XRX, Cheetah

****PLEASE NOTE THE FOLLOWING****

• Depending on the model you have (i.e. XRX, Cheetah, Blazer, etc..) you may need to swap your old flywheel and stator.
• This engine comes with a 12-post Stator
• The wiring for the stator is different based on what model you have, but the engine and mounting points are the same.  if the stator is different you will need to reuse your existing stator and flywheel
• Please note this when ordering this engine that the stator and flywheel from your current engine might have to be reused on this engine for your vehcile to work properly.  For example, if you have an 8-post stator, you may have take your stator and flywheel off your old engine and reuse.  We sell the stators and flywheels if necessary.
• This engine will work for EFI or NON-EFI 200 Trailmaster vehicles
• The 200EFI engine uses a different valve cover with sensor and a different intake manifold.

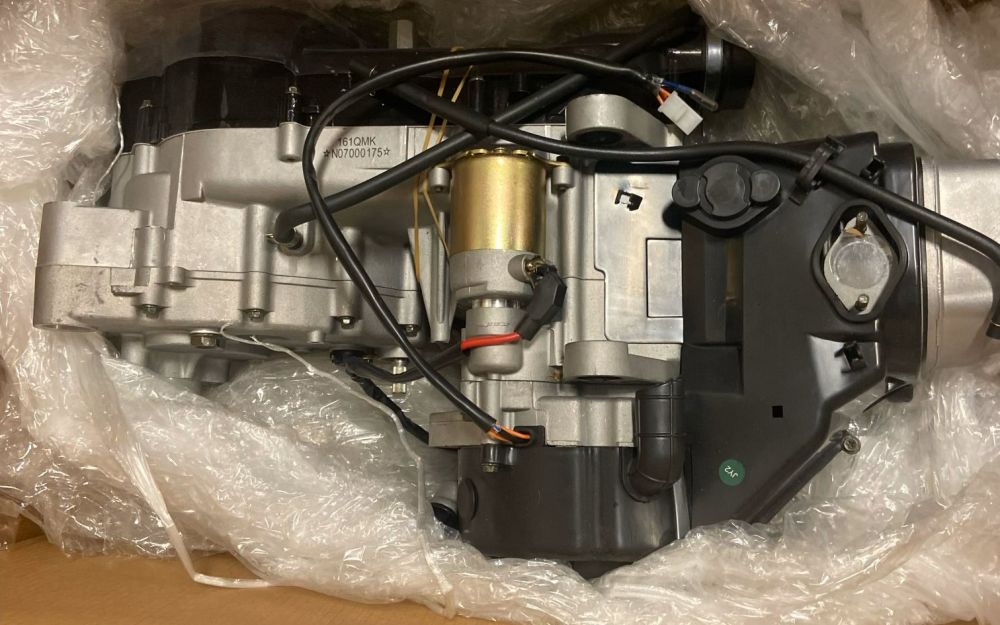

The stator connector in the images is how we are currently receiving these engines.

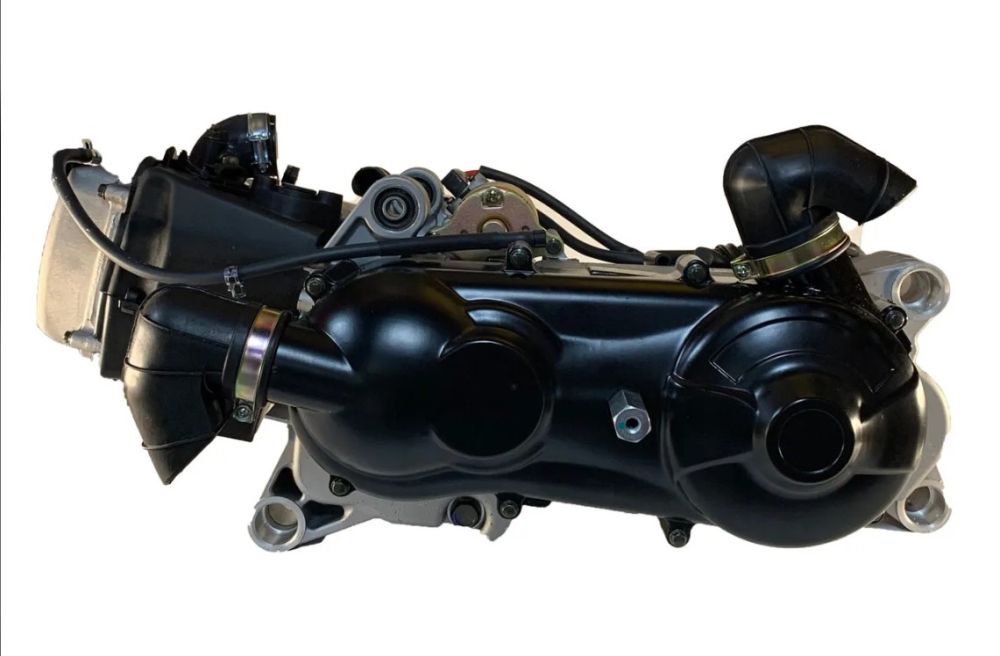

***IMAGE IS REPRESENTATION***

Engine does NOT include:
Carburetor
Exhaust
Air Filter Assembly

Trailmaster part # 200enginecomp_EFI
Trailmaster part # 100040200G000
