Hammerhead Brake Pads, Rear for 250cc / 300cc, Manco 6150 Helix - 7.020.022-250

These rear brake pads work on all Hammerhead 250cc karts. However, the rear brake pads will probably fit most 250cc karts out there. Both sides are included.

One brake pad set will do one caliper. Both brake pads are the same size.

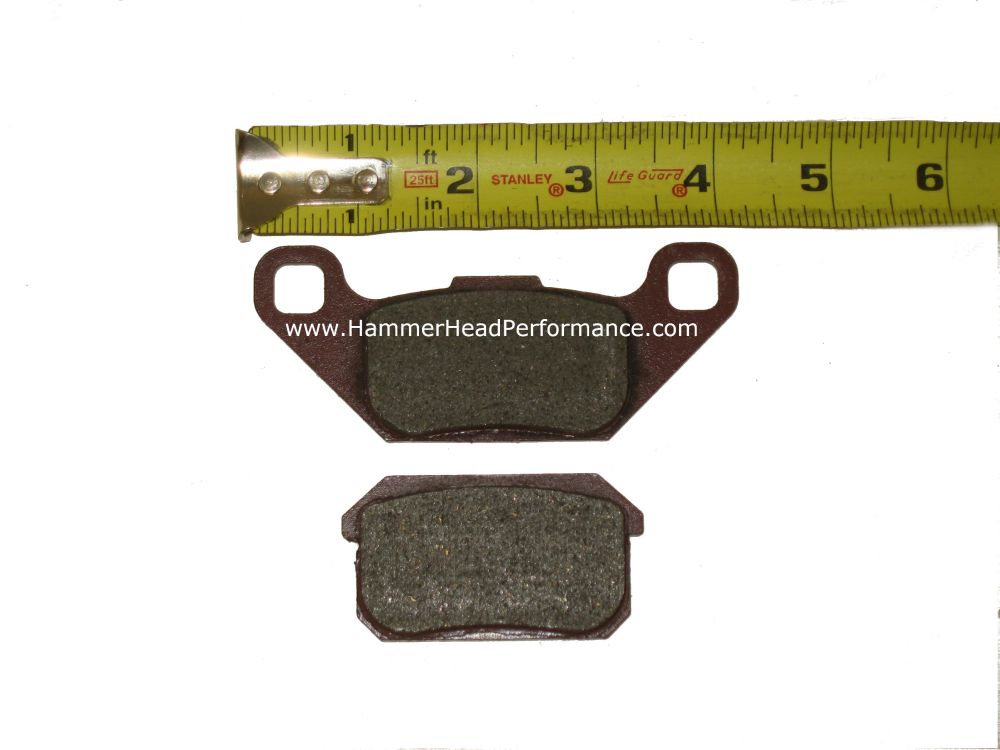

Dimensions of this product:

Smaller piece:

Longest side (including tabs): ~63mm / 2-15-32"
Longest side (excluding tabs): ~57mm / 2-1/4"

Short Side ~34mm / ~1-11/32"

Thickness (including pad): ~11mm / ~7/16"
Thickness (excluding pad): ~5.5mm / ~7/32"

Larger Piece:

Longest side (widest point): ~103.5mm / ~4-1/16"

Short Side (widest section): ~42.5mm / ~1-11/16"
Short Side (center section): ~34mm / ~1-11/32"

Thickness (including pad): ~9.1mm / ~3/8"
Thickness (excluding pad): ~3.33mm / ~1/8"

Trailmaster 300XRX Brake Pads

Hammerhead Part # 7.020.022-250
Joyner 250cc Part # DN250.04.01.00.03, DN250.04.01.00.04
