Hammerhead Brake Pads, Front for 150cc / 250cc / 300cc & Rear Brake Pads for Mudhead 208R and Mid-Size Gokarts - 7.020.016 replaces 7020016250G000, 14142, 14654

Availability: In stock

$13.99

Quick Overview

7.020.016, 150cc and 250cc Front Brake Pads

7.020.016, 80T Rear Brake Pads / MudHead rear Brake Pads

OR

Details

Brake pads that are used on most hammerhead 150cc and 250cc models. Also used on ASW 7150, LandMaster 200 and R-150.  These brake pads are also used as the rear brake pads on the Mudhead and Trailmaster Mid-Size Gokarts

These are the brake pads for one caliper. In other words, one brake pad set will do one caliper.

**These are also used as rear brake pads for the 80T.**
**These are also used as rear brake pads for the MudHead.**

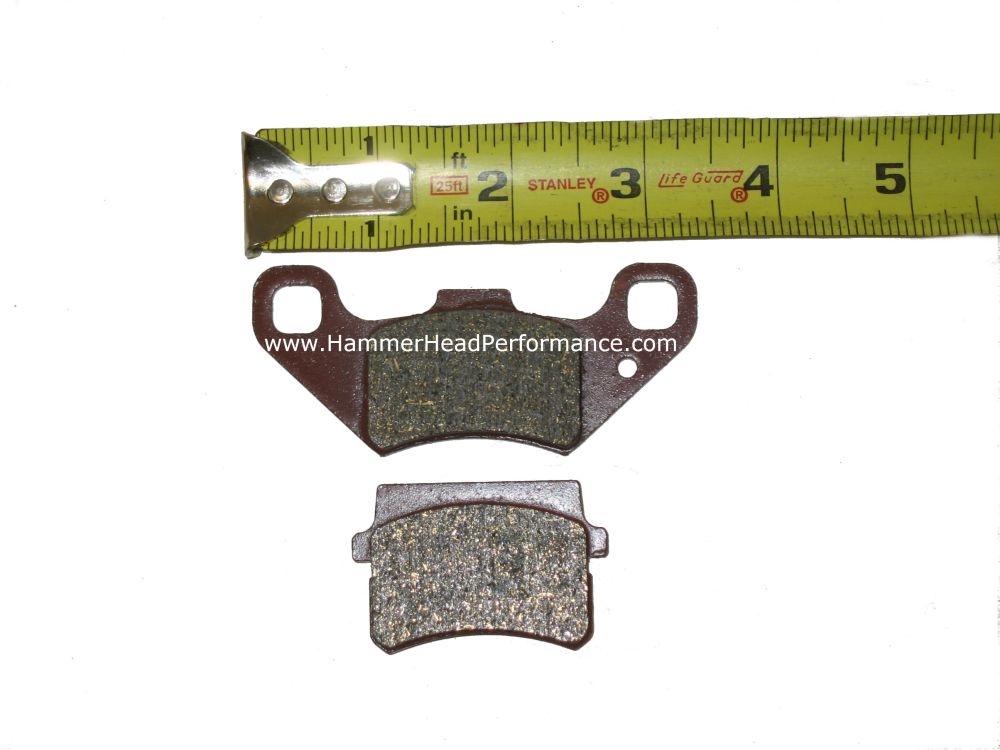

Dimensions:

Smaller piece:

Longest side (including tabs): ~48mm / 1-7/8"
Longest side (excluding tabs): ~40.5mm / 1-19/32

Short Side (widest section): ~32mm / ~1-1/4"
Short Side (narrow section): ~28.5mm / ~1-1/8"

Thickness (including pad): ~10.25mm / ~13/32"
Thickness (excluding pad): ~5mm / ~3/16"

Larger Piece:

Longest side (widest point): ~85mm / ~3-11/32"

Short Side (widest section): ~36mm / ~1-13/32"
Short Side (center section): ~28.5mm / ~1-1/8"

Thickness (including pad): ~8mm / ~5/16"
Thickness (excluding pad): ~3.3mm / ~1/8"


Hammerhead Part # 7.020.016

American SportWorks Part # 14142

American Landmaster Part # 14654

Trailmaster part # 7020016250G000

Baja Reaction 150 & 250 Part # BR150S-253
Baja Dune 150 Part # DN150-71
Baja Dune 250 Part # DN250-643
Carter Bros GSR, GSX 150 part # 552-3007
DongFang 150/200 Part # 190009
Joyner Viper 150 Part # DN250.04.01.00.03, DN250.04.01.00.04
Joyner 250cc Part # DN250.04.01.00.03, DN250.04.01.00.04
Roketa GK-13 250 Part # GK-13-250-05-14-05
Roketa GK-19 250 Part # GK-19-250-06-10-02 (if your stock ones measure out to the dimensions above)
SunL SLGk-250-2A Part # G-1602003 (Check measurements)
Tomberlin Crossfire Part # 1010635
