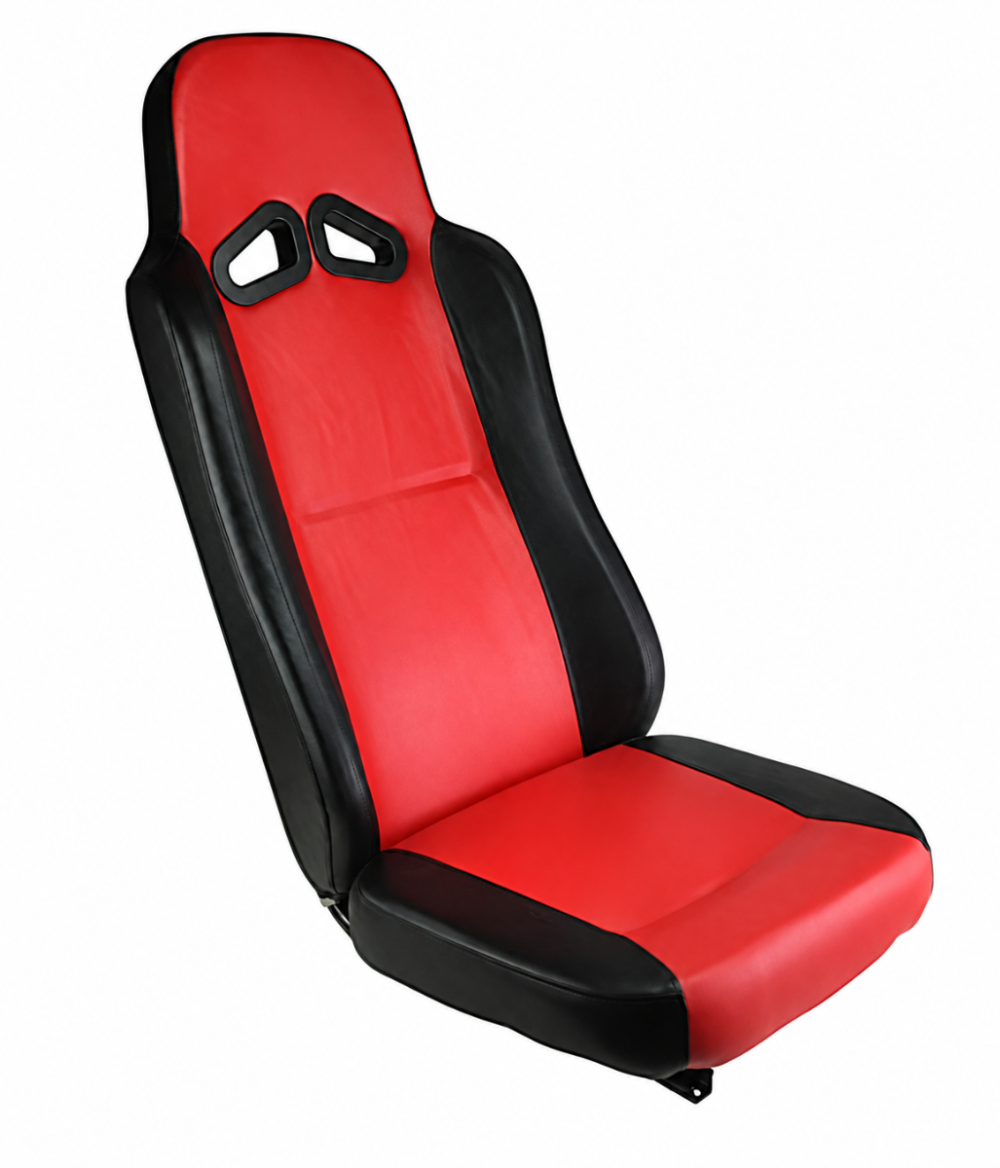

Trailmaster Seat, Right (Passenger) Red Seat for 150cc / 200 / 300cc - 6000377150G000 replaces 6000377150G000-RED

Passenger seat in Red/Black.  This seat works for all Trailmaster 150/200/300 gokarts.  This is a two-piece seat.  The back of the seat has two holes that slide over pipes on the seat base.

Seat back specs:

• Red with black trim
• Approximately 30 1/4 inches tall
• Approximately 16 3/4 inches wide
• Two slots in seat back for seat belt

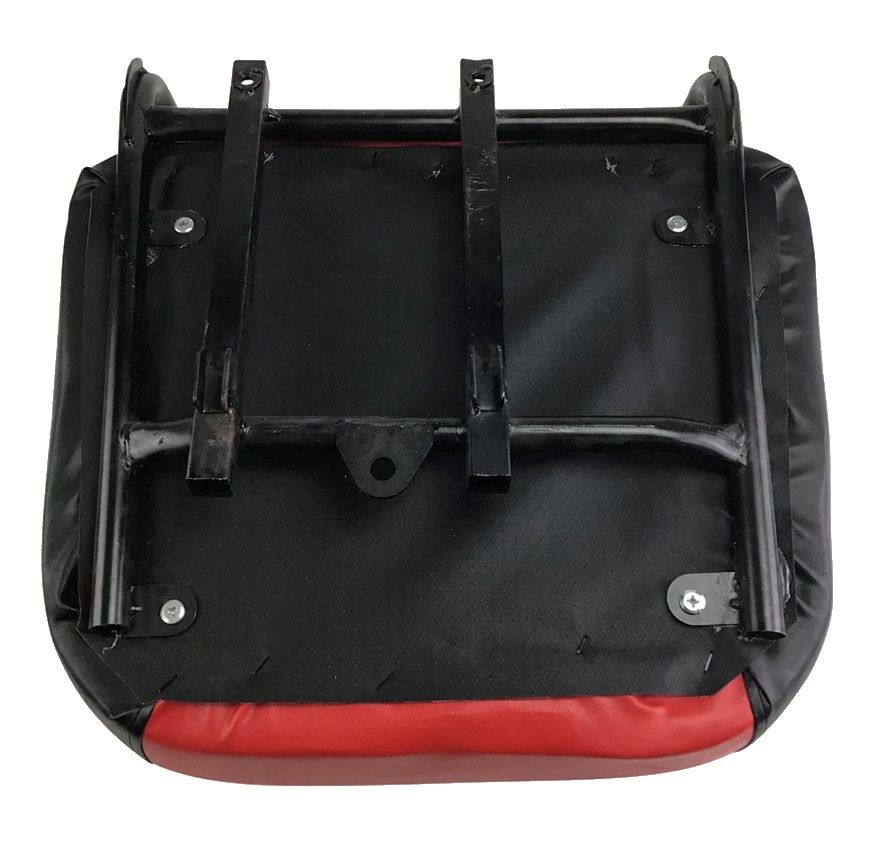

Seat base specs:

• Red with black trim
• The cushion is approximately 14 1/4 inches deep and 16 3/4 inches wide near the back
• The cushion is about 2.7 inches thick
• Two mounting rails
• Rails are fixed - NO ADJUSTMENT
• Rails hook in the front and have 8mm*1.25 threaded holes in the back
• Distance between the rails is 111mm (4.36 in)

Trailmaster part # 6000377150G000PASS-RED
Trailmaster part #  6000377150G000
Trailmaster part #  6000377150G000-RED
Trailmaster part #  6.000.377
