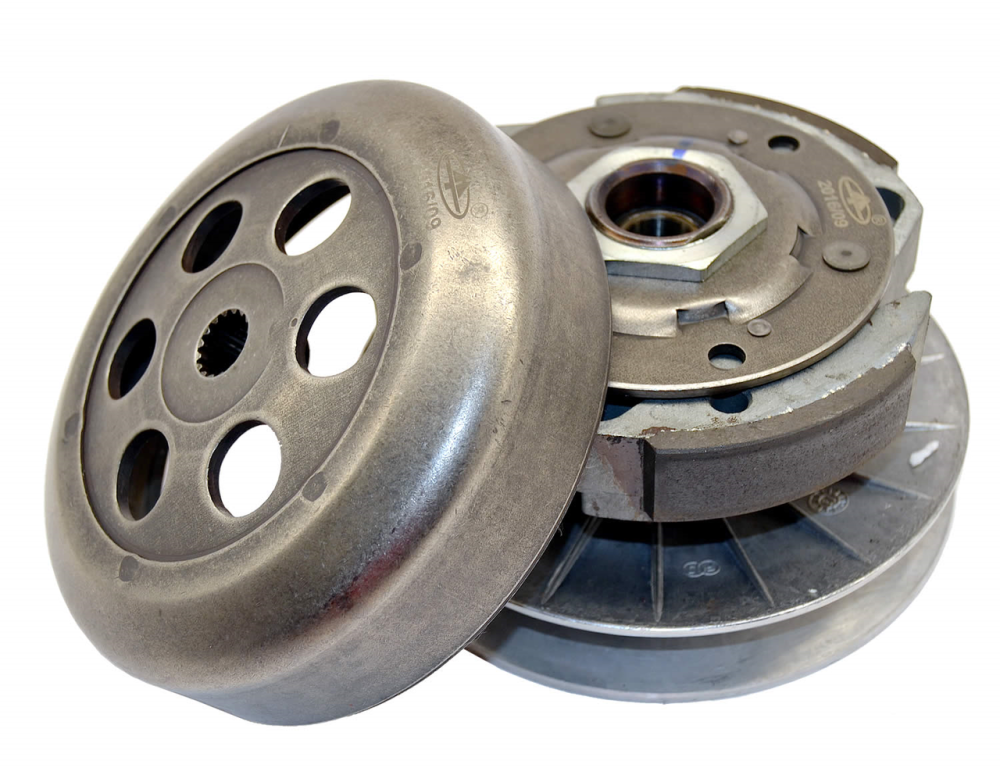

Hammerhead Clutch Rear Pulley, Driven for 300cc - 169.10.210

Rear Clutch assembly for Trailmaster 300cc vehicles.  Comes with Drum.

• Inner Diameter (Clutch Bell): 145mm
• Outer Diameter (Clutch Bell): 155mm
• Uses 6903RS Bearing
• Bearing Inner Diameter: 17mm
• Pulley Outer Diameter: 164mm
• Overall Height: 96mm
• Number of Splines: 16
• Splined Inner Diameter (peak to peak): 15.2mm
• Splined Inner Diameter (valley to valley): 17.2mm

Clutch Assembly for the VOG 260 BN169MM Engine commonly found in Linhai 250/260/300 Scooters and many other makes and models.

Rear driven clutch assembly for Trailmaster 300cc vehcicles.

300cc Clutch Assembly, Driven

Challenger 300cc clutch
300XRX clutch
3000XRS clutch
300E clutch

Trailmaster Part # 169.10.210

Some of the models and brands using this engine include the Aprilia Leonardo 250, Aprilia Leonardo 300, Benelli Velvet 250, Diamo Turista, Italjet Jupiter 250, JCL, VOG 260, Linhai Aeolus, Linhai ATV 260, Linhai Tank 260, Tank Touring 250DE, Malaguti Madison 250, Malaguti Password 250, MBK Kilibre 300, MBK Skyliner 250, Renault Kouranos 250, Roketa MC-54 250B, Xingyue VOG 260, Yamaha Majesty 250 (mod. 1999), Yamaha Majesty 250 and many more.
