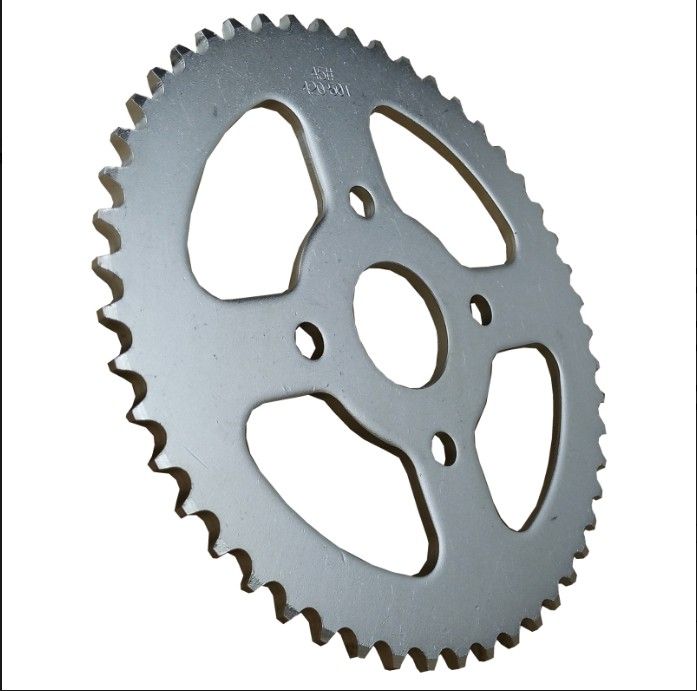

Hammerhead Sprocket, 50T 420 Rear Axle Drive Sprocket for Coleman / Trailmaster MinBike - 23576-200

50T Sprocket for the Coleman 200 Minibikes.   Works with #420 Chain.

Also fits many 8" Minibike Rear wheels with the 3.125" bolt pattern (TrailMaster MB200/Coleman 200s)

• 4 Bolt pattern is 3.125"
• Center hole is 1.5"
• Overall diameter is 7.5"
• For #420 Chain

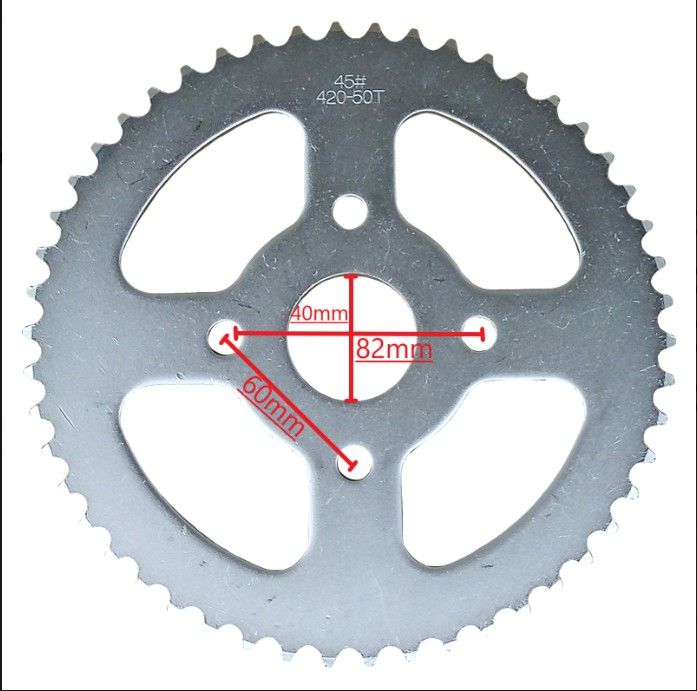

• Hole diameter: 0.43" 11 mm
• Center Hole Diameter: 40 mm
• Side Hole Diameter: 60mm
• Total Diameter: 8.07" (205mm)
• Center to center bolt hole circle: 82 mm

Known Fit for 212cc 196c 6.5hp Coleman powersports CT200U BT200X CT200U-ex CT200U Trail 200,Baja Motorsports Mini Bike MB165 & MB200 (Heat, Mini Baja, Warrior), Hensim Mini Bike MB165 & MB200 (Heat, Mini Baja, Warrior),Massimo Trailmaster MB200 mini bike

Hammerhead part # 420-50T
